Overhead Rings

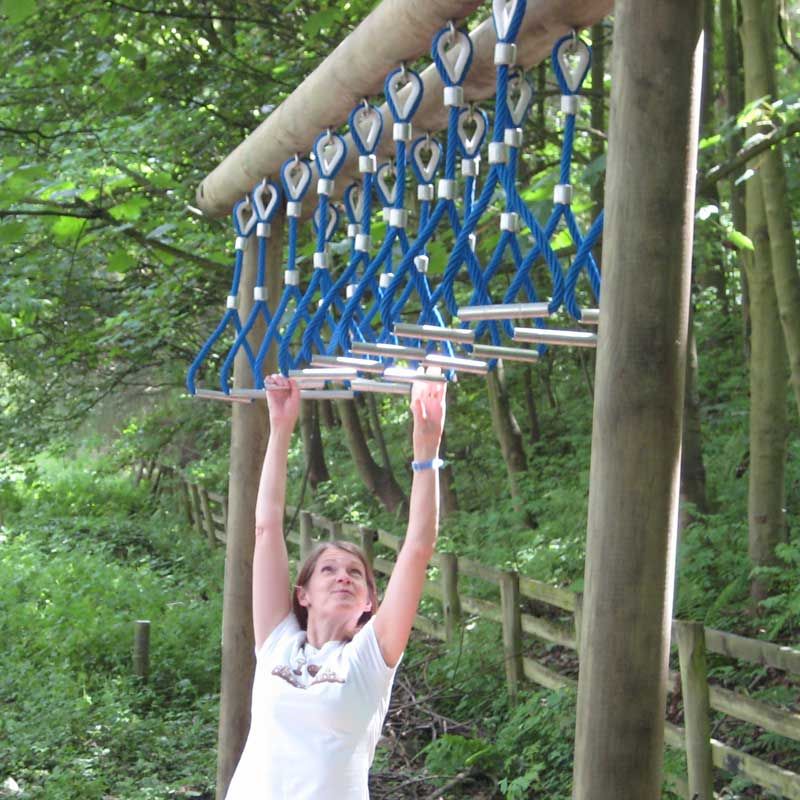

Eight overhead rings with approximately 0.30m hang, supported by a 3.5m long timber logs.

Overall Height: 3.0m
Length: 3.5m
Width: 0.40m

If thinking about Illustrated Exercise Sign combinations we recommend either the FT305 Hamstring Stretch or the FT940 Step Ups to go with the main FT424 Overhead Rings illustration.

The free height of fall for this item as defined under BSEN16630 is 1.7m.

We recommend the use of 2no. Compliant Grow Through Grass Tiles to create 'wear pads' for this item. To be fully compliant with BSEN16630 it would need a total of 20no. tiles.

DELIVERY & INSTALLATION

If ordering on a supply only basis, standard delivery is free for an order of a minimum of 6 Gym Trail, Fitness Trail or PT Trail stations within a 125 mile radius of Tur Langton, Leicestershire. We can deliver or install this product anywhere in the UK. Any installation quote will include delivery. Please contact our sales office for a quotation.

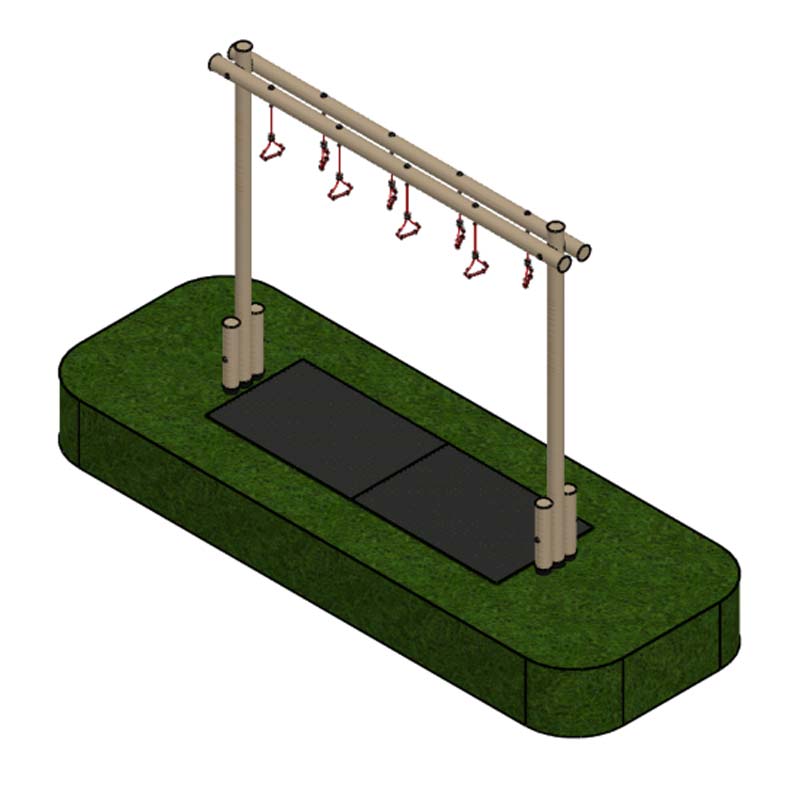

Download the Overhead Rings Data Sheet (PDF) containing dimensions and the layout drawing for this product.

Timber components are pressure treated to provide a life expectancy of 15 years (Please see our Fitness & Physical Training Data Sheets for detailed information).

Please refer to the data sheet link for further information on Product Specifications, Maintenance Advice, Technical Guidelines, Trail Signage, Surface Recommendations, and Design & Layout Drawings for individual stations.
