Electronic Cricket Scoreboard (23 Digit/Play Cricket Compatible)

Electronic cricket scoreboard with a 23 digit display.

Play Cricket compatible.

Shows Batter Totals, Total, Overs, Wickets, Score to Win and Clock (HH:MM).

Compatible with the Play Cricket system, allowing real time scoring to be made available online.

Bright, high intensity LED numbers provide excellent visibility.

Strong aluminium case, powder coated black.

Fully welded frame, made from 2mm thick aluminium.

LED numbers protected by 5mm thick clear polycarbonate windows.

Scores can be updated from anywhere around the cricket pitch using the included remote control with a 150m range.

200mm and 250mm high white LED numbers (10 and 12 inches).

Batter names or numbers (on 160mm x 640mm matrix board in red).

Available with or without a trolley. Please select choice when ordering.

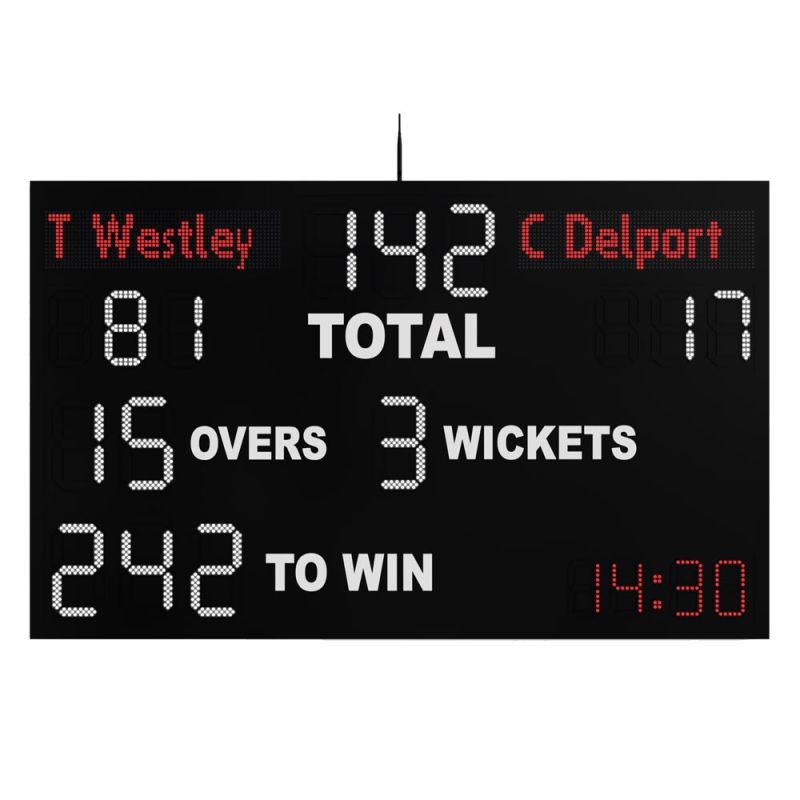

Information displayed by this 23 Digit Electronic Cricket Scoreboard includes:

• 2 x Batter names or numbers (on 160mm x 640mm matrix board in red)
• 2 x Batter totals - 200mm (8 inch) size digits
• Total - 250mm (10 inch) size digits
• Overs (max 99) - 250mm (10 inch) size digits
• Wickets (max 9) - 250mm (10 inch) size digits
• To Win (1st Innings score +1) - 250mm (10 inch) size digits
• Clock (HH:MM) - 150mm (6 inch) size digits in red



Electronic Scoreboards: Common Questions & Answers

Is there a remote control for the scoreboards?

All scoreboards are supplied with a remote control which has a range of over 150m thus making it the easiest scoreboard to control on the market.

What are the dimensions and weights of each scoreboard?

23 digit display, 2000m x 1240mm x 65mm and weight 50kgs

Can the scoreboard be controlled by a laptop/tablet for the Play Cricket App or Play Scorer Pro?

Yes, the scoreboard connects to any phone or tablet via Bluetooth. If you are using a laptop for Play Scorer Pro a USB lead can connect to the controller allowing you to automatically control the scoreboard ball by ball. You can find instructions on how to connect your cricket scoreboard and score in our Cricket Downloads section.

What power is needed to run the scoreboard?

All of our cricket scoreboards run on 230v mains power, however if you'd prefer your scoreboard to use 12v battery power, please contact us.

What are the scoreboards made of?

Each scoreboard is constructed using a fully welded 2mm think aluminium frame and casing. The outer case is then powder coated and all numbers are protected by 5mm thick unbreakable clear polycarbonate windows.

What is the main difference between the 22 and 23 digit scoreboards?

The 22 digit scoreboard comes equipped with a DLS score, if your league uses DLS. If you don't need DLS a digital clock is provided instead thus giving the scoreboard 23 digits rather than 22.

How do we mount the scoreboard?

We provide the option of using a trolley to mount the scoreboard, however they can also be wall or post mounted using brackets (sold separately).

A pack of four 40mm x 40mm x 80mm angle brackets are available to enable the scoreboard to be mounted on a wall or sign rails can be purchased to fix the scoreboards to previously prepared poles.

Use of a trolley means it can be stowed away easily for protection. Having a trolley increases the height by 350mm and width by 50mm. The overall depth to the outside of the wheels is 700mm allowing it to fit easily through a standard single doorway.

Is there any ECB funding available for these products?

ECB funding is available through the County Grants Fund but not solely for a scoreboard, it needs to part of a wider club digitisation project. For more information, please visit the ECB website.

Does the scoreboard come with a warranty?

Yes every scoreboard comes with a 2 year warranty from the date of purchase. This warranty covers all parts and labour required to remedy any manufacturing defects that may arise during normal use of the product.

Ordering

Suitable for wall or post mounting (brackets sold separately), however an optional trolley is also available, to allow the scoreboard to be used as a mobile, freestanding unit.

To order an electronic scoreboard, simply select the scoreboard option you require from the drop down menu.
